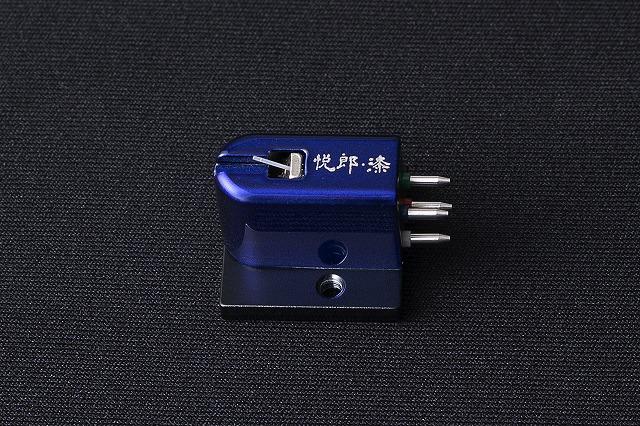

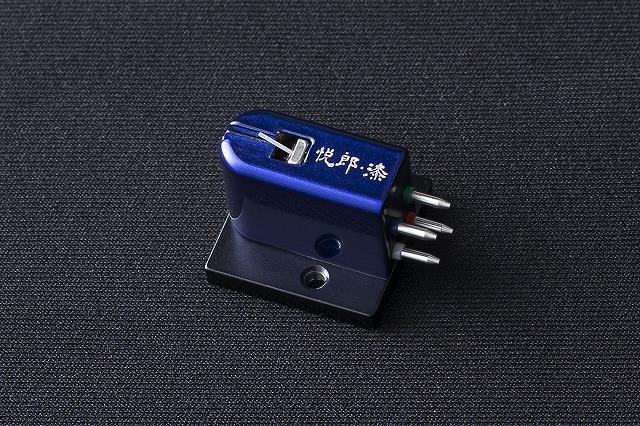

ETSURO-URUSHI COBALT BLUE

The Cobalt Blue uses the Microline tip stylus possessing ideal curvature of 80μm contact surface against the record groove. This contact surface achieved a superior reproduction characteristic. Cobalt Blue has been created to naturally reproduce the sound cut on the record.

Ultra-precise Sapphire pipe material has been introduced for the cantilever. The remarkable hardness of the sapphire will help reduce distortions and is also superb in the transmission of high speed vibration to create an increasingly clear sound.

The magnetic circuit combined the performance proven samarium cobalt and electromagnetic soft-iron to achieve the magnetic features consistent with the coil vibration. Overall balance and steady sound has been secured. The terminal pin has selected to use rhodium plating.

Extra-super duralumin (A7075) known for its extreme strength among the aluminum alloy has been chosen for both the cartridge housing and the base section. Because of this, the cartridge succeeded to gain overall rigidity to the structure and avoid unnecessary resonance.

In addition to this extreme strength, the Extra-Super Duralumin housing has further been reinforced and handcrafted by the Japanese traditional craft urushi lacquering. This gives the cartridge a superb strength, weight, and a beautiful aesthetic appearance of the cobalt blue color.

The experience and craftsmanship built for over half a century will unlock the door towards the renewed sound of analog record.

MOVIE

SPECIFICATIONS

Type

Moving coil

Frequency response

15-50,000Hz

Output voltage

0.25mV/1kHz

Output balance

<0.5dB/1kHz

Channel separation

33dB/1kHz

Tracking weight

2gr

Impedance

3Ω/1kHz

Trackability

>70μm/2gr

Stylus shape

80μm microline diamond

Cantilever

0.4φsapphire pipe

Cartridge base

Extra super duralumin(A7075)

Cartridge housing

Extra super duralumin(A7075)

Housing processing

Urushi handmade

Terminal pin

Rhodium plated

Cartridge weight

8.1 grams

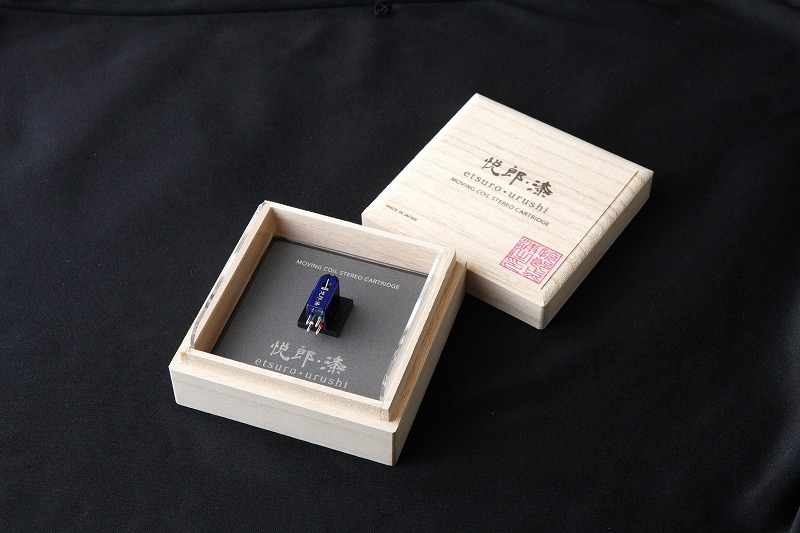

Content

warranty card, instruction manual(Dimensions, specifications), Stylus brush, 2 mounting screws

Box Material

Blue Paulownia
