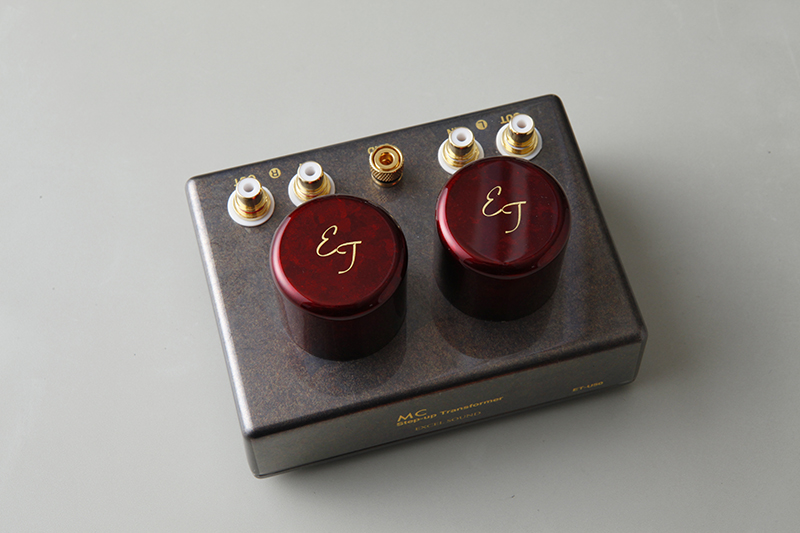

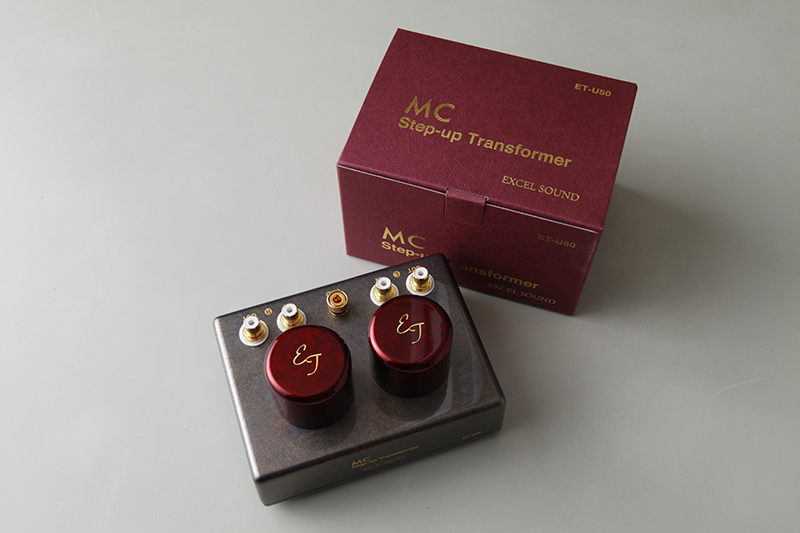

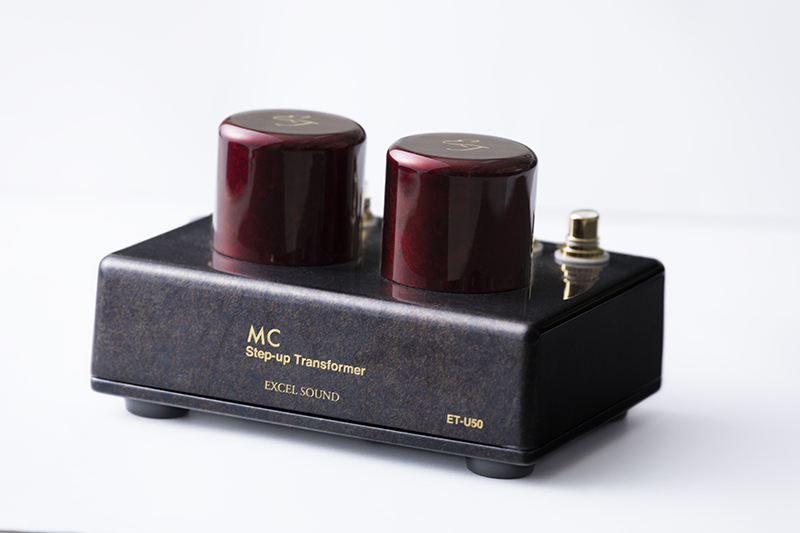

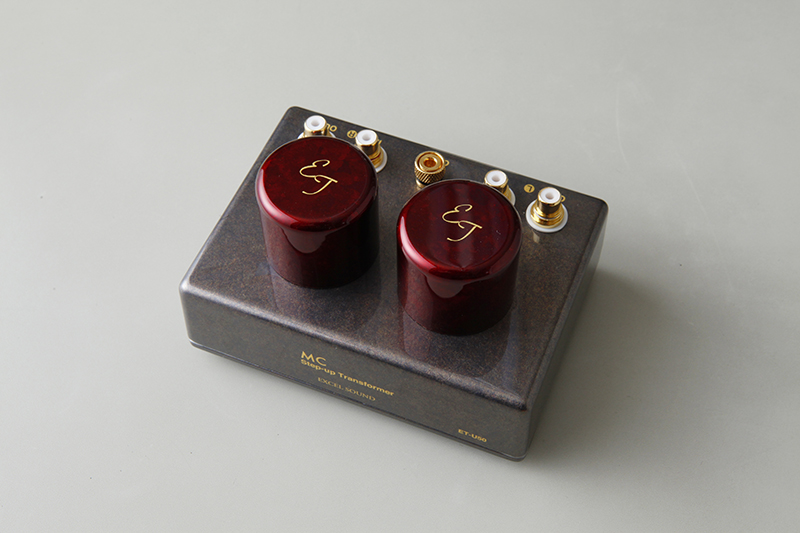

ETSURO TRANSFORMER

The core part of the transformer is installed with "EX Type" 78% permalloy core having superb inductance property, achieving to create a wide performance range. Likewise, the shield case chose to use the same material in order to aim for the decrease in the noise components. "Damping material, Sorbothane" carrying high vibration absorbing characteristics located on the transformer support, effectively works to improve the distortions of the sound.

The outer base and aluminum housing applied by the Japanese traditional craft "URUSHI・漆" lacquering presents a beautiful shine and texture art, which also contributes to the overall rigidity. Each piece is hand lacquered by the traditional craftsmen creating an artistic work of art.

SPECIFICATIONS

Type

MC-Step Up Transformer(ET-U50)

Frequency response

10Hz ~150KHz

Step-Up Ratio

26dB

Compatible cartridge impeadance

2 - 10Ω

Recommended Load Impeadance

47KΩ

Channel Balance

<0.5dB

Dimensions

95(W) x 85(H) x 135(D) mm

Weight

530g

Content

Warranty card (with instruction manual)

Box Material

Dressing box
